Custom Built Running Floor Trailer
The Dura-Trek Advantage
This running floor trailer is the most versatile trailer we offer. Any bulk commodity to palletized load, no problem, the running floor system will run loads front or back. With the custom extruded frame rails top and bottom, this trailer withstands just about anything. Duraplate sidewalls provide exceptional rigidity, durability, but yet remain flexible. The sidewalls are easy to clean thanks to the smooth painted white finish. Barn style doors allow for backing up to docks to load pallet loads.
Keith Running Floor II
ALUMINUM FRAMEWORK & 7 PROPRIETARY EXTRUSIONS

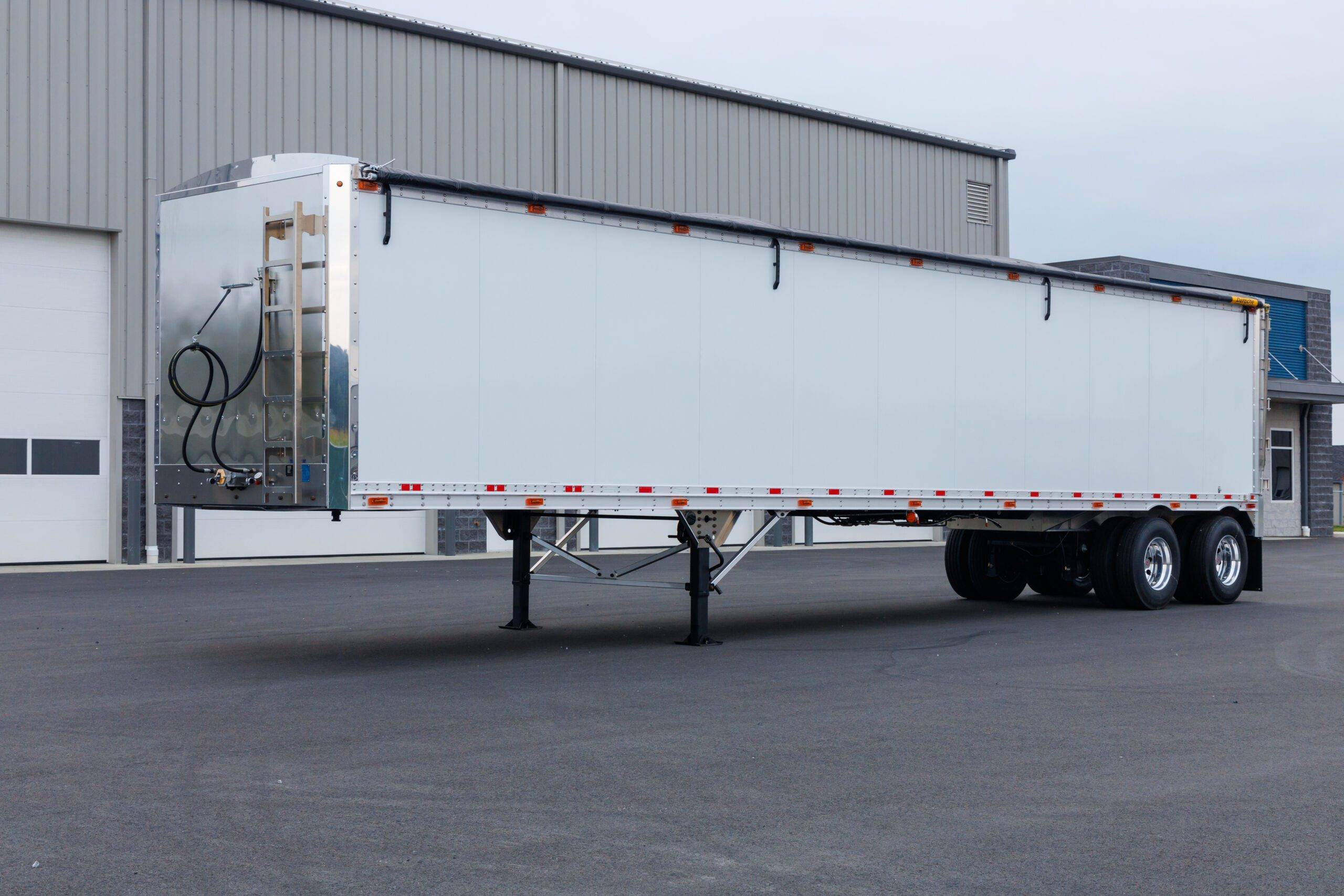

Duraplate Sidewalls

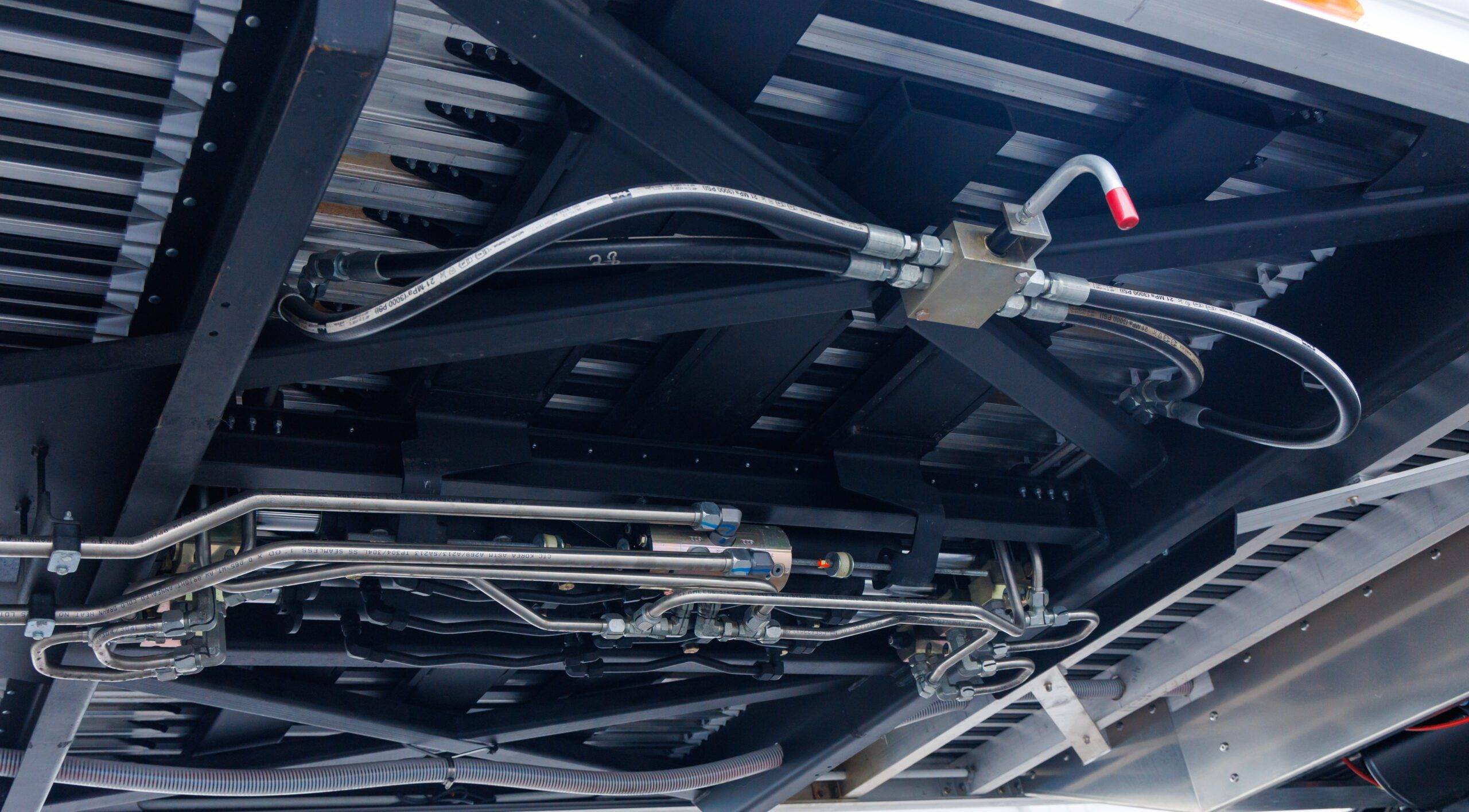

KEITH WALKING FLOOR SYSTEM
ALUMINUM FRAMEWORK & 7 PROPRIETARY EXTRUSIONS
DURAPLATE SIDEWALLS
| Length: | Available in 41', 45', 49' (custom sizes can be done) |
|---|---|
| Width: | 102" wide (96" wide available) |
| Height: | Available from 10' - 13'6" in 6" increments |
| Capacity: | 65 - 135 cu.yd. |
|---|---|
| Sub-Floor: | Extruded Aluminum floor slat with a poly snap-down bearing |
| Walking Floor System: | Keith Walking floor unit custom made to integrate into our trailer frame. |

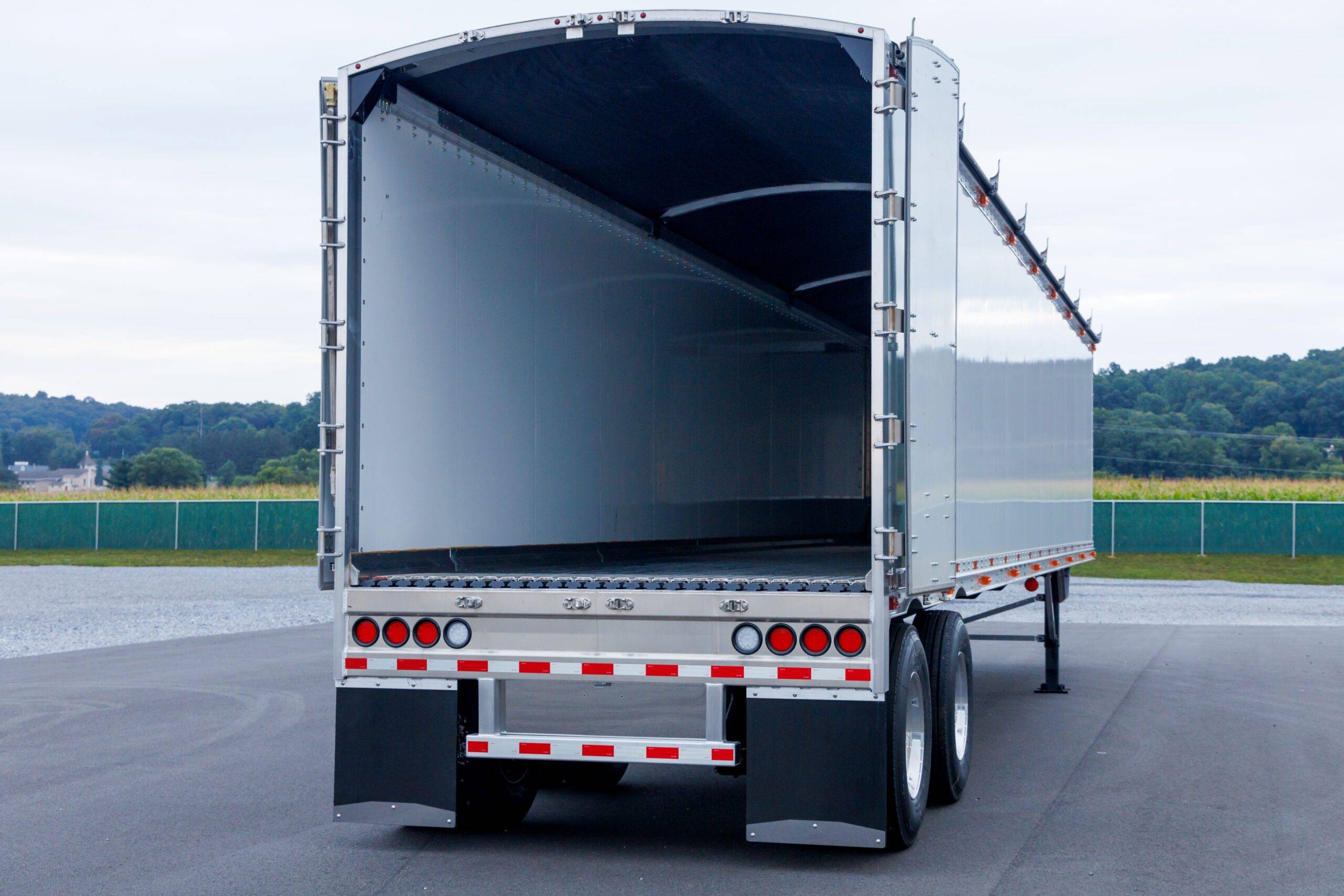

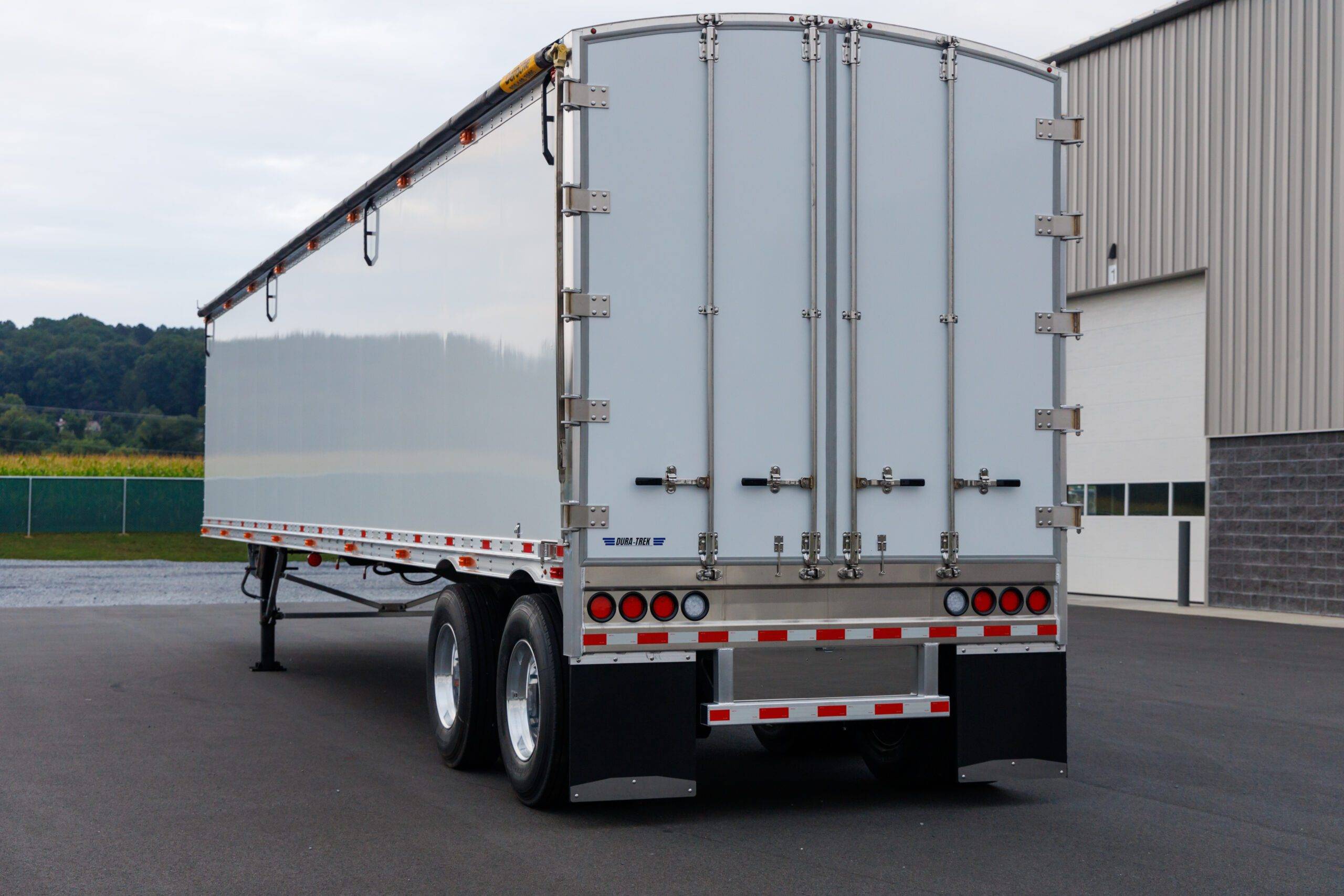

| Door: | Barn style Duraplate panel doors with Stainless Steel cam-lock door latches. |
| Sidewalls: | The Duraplate sidewalls are 13 mm thick high density polyethylene core panel, with a 80,000 psi. yield fully hardened steel skin. These panels are glued together every 48" at a ship-lap seem. The fully hardened steel skin is hot dipped in a G-90 zinc coating, primed with a rust inhibitive baked on primer, and finally coated with a polyester baked on paint. White is the standard color (black is also available). |
| Tarp & Bows: | 22 oz. vynil & trampoline mesh available. These tarps are sewed together with high quality vynil, reinforced at all contact points with double layers and Nylon seat belt strap to ensure years of use without tearing or wearing through. Tarp bows are heavy duty aluminum tubes rolled to 6" rise for the front and rear tarp pans. There are two more tarp bows in the center rolled to 8" rise. This allows for maximum water shedding. |
| Lighting: | Maxxima LED lighting comes standard. 7 lights down the sidewalls top and bottom. More or less available. Inside work light mounted on front wall shining back. |
| Frame: | Custom extruded aluminum bottom rail with aluminum crossmembers set at 16" spacing |
|---|---|
| Fifth Wheel: | Hard-Ox steel fabricated upper coupler with a 36" king pin set |
| Landing Gear: | Holland Mark IV Mounted on outside bottom rails |
| Sub-Frame: | All-aluminum construction |
| Axles: | Hendrickson Intraax 25,000 lb. with a HXL5 semi-fluid grease wheel end. Disc or Drum brakes available. |
| Wheels & Tires: | 11R22.5 RoadX RH647 LRH tires (other options available) mounted on Alcoa 8.25 x 22.5 Rims full polished (Dura-Brights available) |
Documents
- Coming Soon
Specs
| Length: | Available in 41', 45', 49' (custom sizes can be done) |
|---|---|
| Width: | 102" wide (96" wide available) |
| Height: | Available from 10' - 13'6" in 6" increments |
| Capacity: | 65 - 135 cu.yd. |
|---|---|
| Sub-Floor: | Extruded Aluminum floor slat with a poly snap-down bearing |
| Walking Floor System: |
Keith Running Floor II unit custom made to integrate into our trailer frame.
|
| Door: | Barn style Duraplate panel doors with Stainless Steel cam-lock door latches. |
| Sidewalls: | The Duraplate sidewalls are 13 mm thick high density polyethylene core panel, with a 80,000 psi. yield fully hardened steel skin. These panels are glued together every 48" at a ship-lap seem. The fully hardened steel skin is hot dipped in a G-90 zinc coating, primed with a rust inhibitive baked on primer, and finally coated with a polyester baked on paint. White is the standard color (black is also available). |
| Tarp & Bows: | 22 oz. vynil & trampoline mesh available. These tarps are sewed together with high quality vynil, reinforced at all contact points with double layers and Nylon seat belt strap to ensure years of use without tearing or wearing through. Tarp bows are heavy duty aluminum tubes rolled to 6" rise for the front and rear tarp pans. There are two more tarp bows in the center rolled to 8" rise. This allows for maximum water shedding. |
| Lighting: | Maxxima LED lighting comes standard. 7 lights down the sidewalls top and bottom. More or less available. Inside work light mounted on front wall shining back. |
| Frame: | Custom extruded aluminum bottom rail with aluminum crossmembers set at 16" spacing |
|---|---|
| Fifth Wheel: | Hard-Ox steel fabricated upper coupler with a 36" king pin set |
| Landing Gear: | Holland Mark IV Mounted on outside bottom rails |
| Sub-Frame: | All-aluminum construction |
| Axles: | Hendrickson Intraax 25,000 lb. with a HXL5 semi-fluid grease wheel end. Disc or Drum brakes available. |
| Wheels & Tires: | 11R22.5 RoadX RH647 LRH tires (other options available) mounted on Alcoa 8.25 x 22.5 Rims full polished (Dura-Brights available) |
